Hopper loader is an essential unit used in central conveying system for plastics processing. Depending on the properties of various materials and requested processes, NHR-6U-S vacuum loader and NHR-6U-ES just-in-time loader are available per customers’ specific needs.

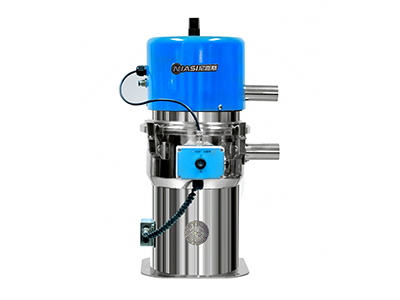

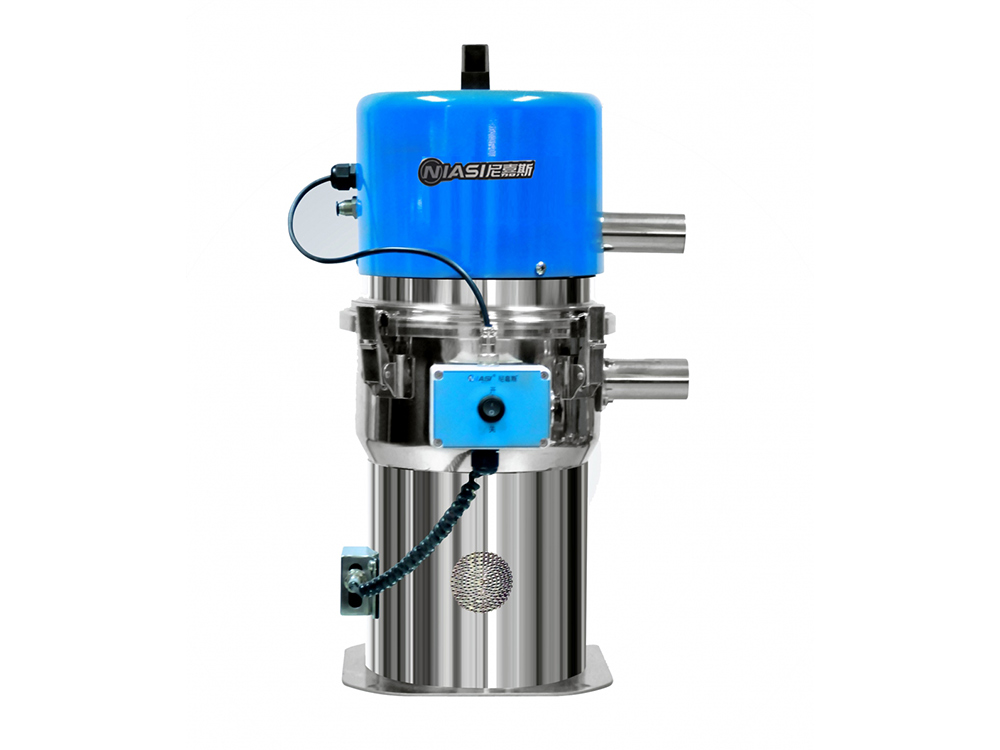

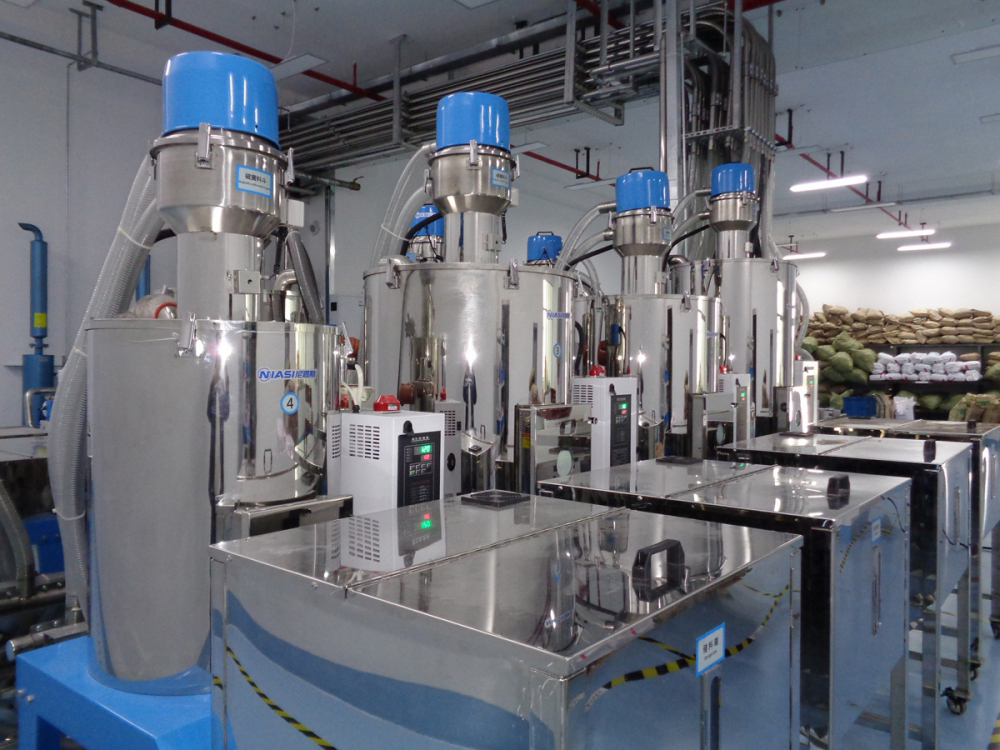

Vacuum loader can be placed directly on the dryer, configured with magnetic reed switch.

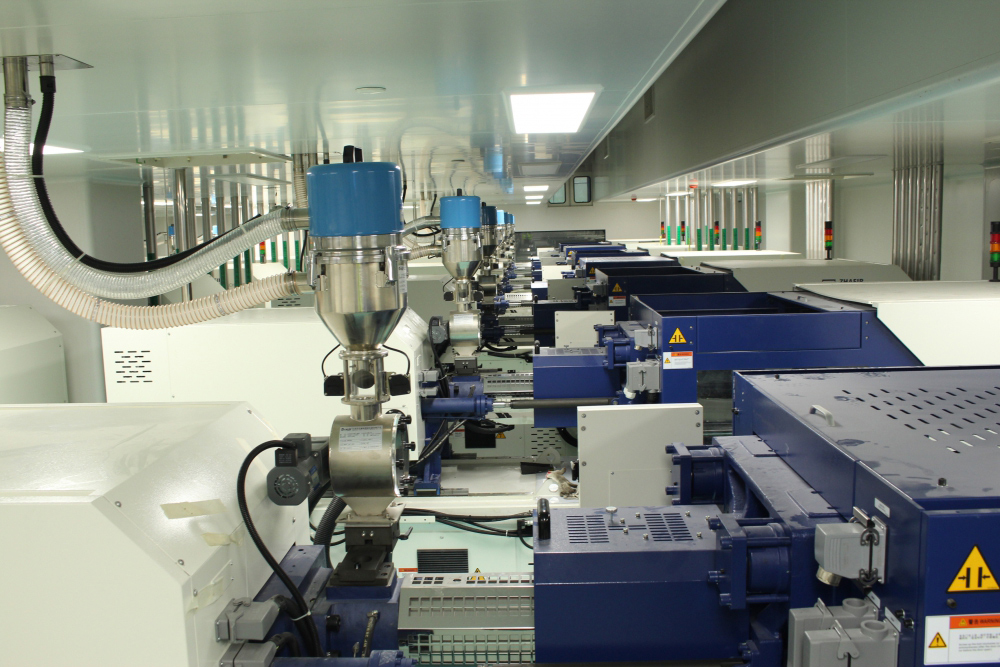

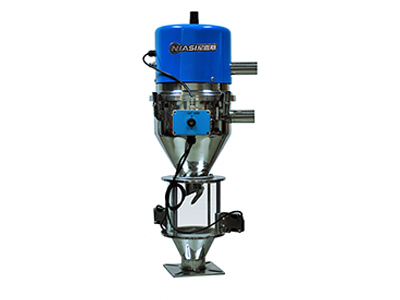

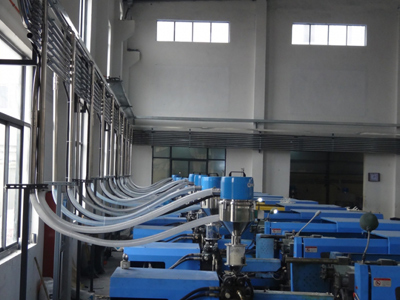

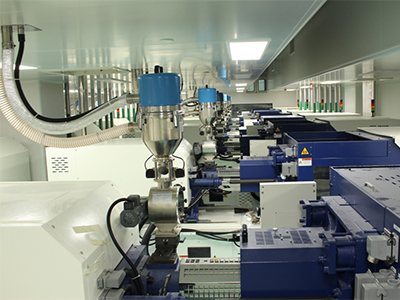

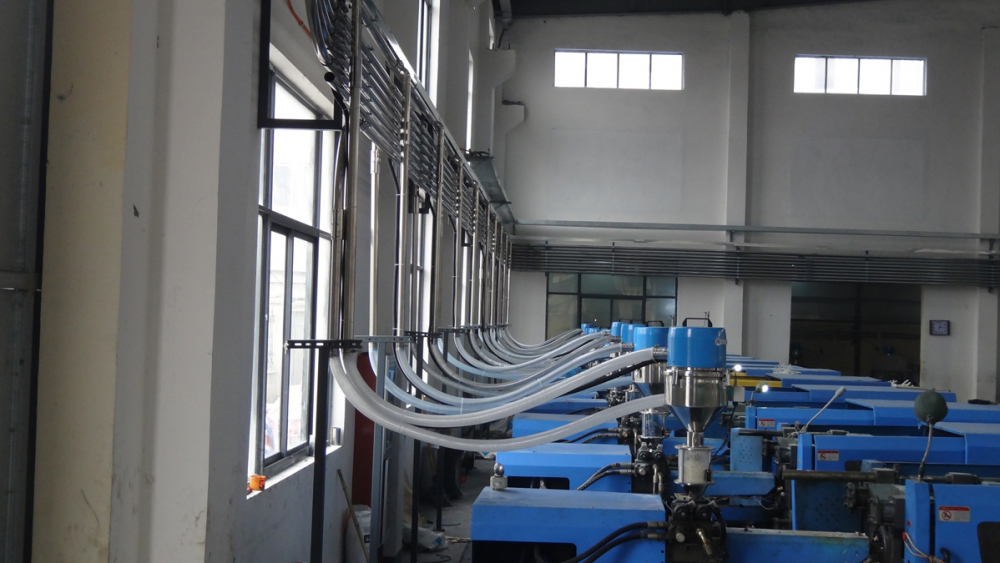

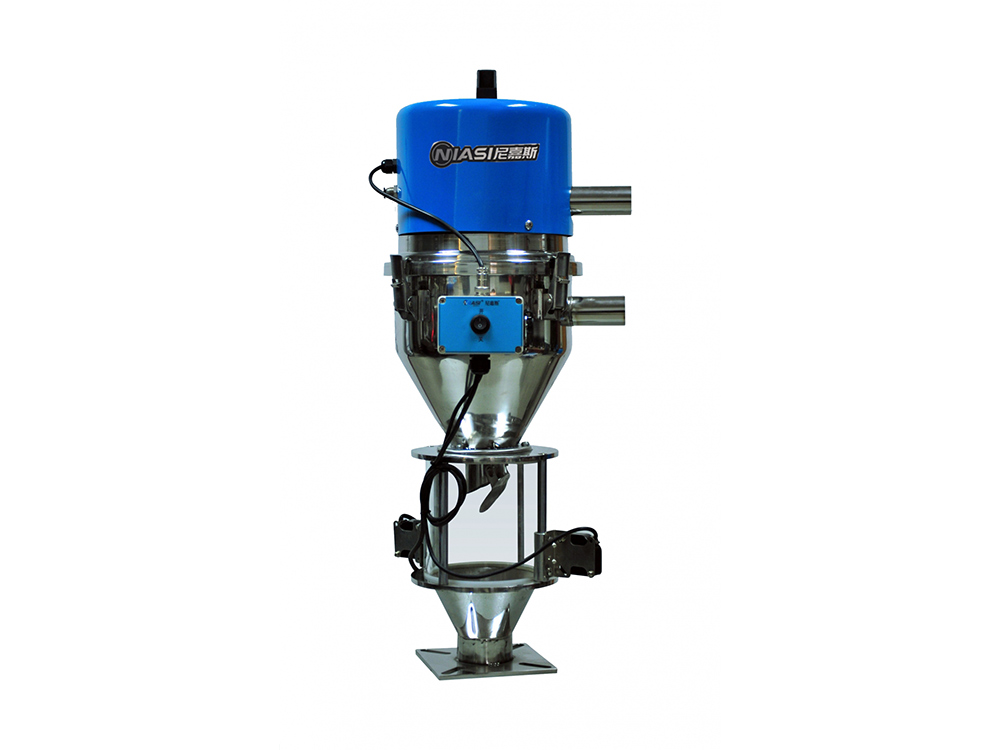

Just-in-time loader can be mounted directly onto feed throat of molding machine, configured with photosensor switch to accurately control material loading.
Features:
- Built-in vacuum diaphragm valve guarantees continuous loading of materials
- Compact structure, easy installation
- Stainless steel mesh filter efficiently prevents dust and fine particles from being sucked into vacuum line
Specification:
| Model | NHR-3U-S | NHR-6U-S | NHR-12U-S | NHR-24R-S | NHR-36U-S | NHR-48R-S | NHR-96U-S | NHR-3U-ES | NHR-6U-ES | NHR-12U-ES | NHR-24R-ES |
| Hopper capacity | 3 | 6 | 12 | 24 | 36 | 48 | 96 | 3 | 6 | 12 | 24 |
| Conveying pipe diameter | 1.5" | 1.5" | 2" | 2" | 2" | 2.5" | 2.5" | 1.5" | 1.5" | 2" | 2" |
| Suction pipe diameter (inch) | 1.5" | 1.5" | 2" | 2" | 2.5" | 3" | 3" | 1.5" | 1.5" | 2" | 2" |
| Dimension H*W*D(mm) | 585*260*385 | 555*305*430 | 475*335*615 | 1035*335*475 | 1035*335*475 | 1140*400*540 | 1385*476*625 | 740*160*385 | 740*295*430 | 840*340*475 | 1260*370*475 |
| Net weight (kg) | 4.5 | 8 | 9 | 14 | 15 | 20 | 24 | 7 | 10 | 14 | 16 |
Gallery
