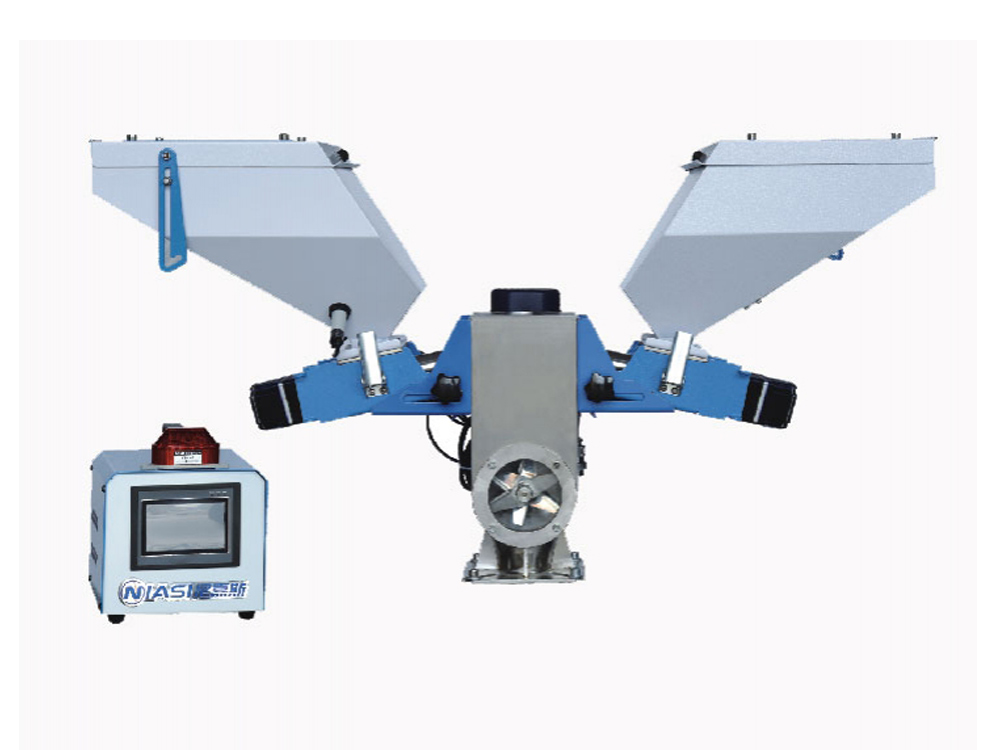

Volumetric dosing unit is designed for auto-proportional mixing of virgin materials, regrinds, masterbatch and additives in plastic processing industry. This gravimetric doser

Request A Quote

Specification:

	Single color doser					Double color doser
Model	CM30-24	CM30-20	CM30-16	CM30-12	CM50-12	CM-D30/30	CM-D30/50	CM-D50/50
Motor power (KW)	30	30	30	30	30	30*2	30*2	30*2
Motor rotation speed (RPM)	3000	3000	3000	3000	3000	3000	3000	3000
Mixing power (W)	90	90	90	90	90
Screw diameter	24	20	16	12	12	12*2	12*2	12*2
Output capacity (KG/H)	1.8-50	0.7-22	0.3-12.3	0.1-3.8	0.1-3.8	0.1-2.2
Storage hopper (L)	12	12	12	12	12	12*2	12*2	12*2
Gear ratio	30	30	30	30	50	30/30	30/50	50/50
Height (mm)	520	520	520	520	520	615	615	615
Width (mm)	610	610	610	610	610	1045	1045	1045
Depth (mm)	335	335	335	335	335	335	335	335
Weight (kg)	15	15	15	15	15	33	33	33
