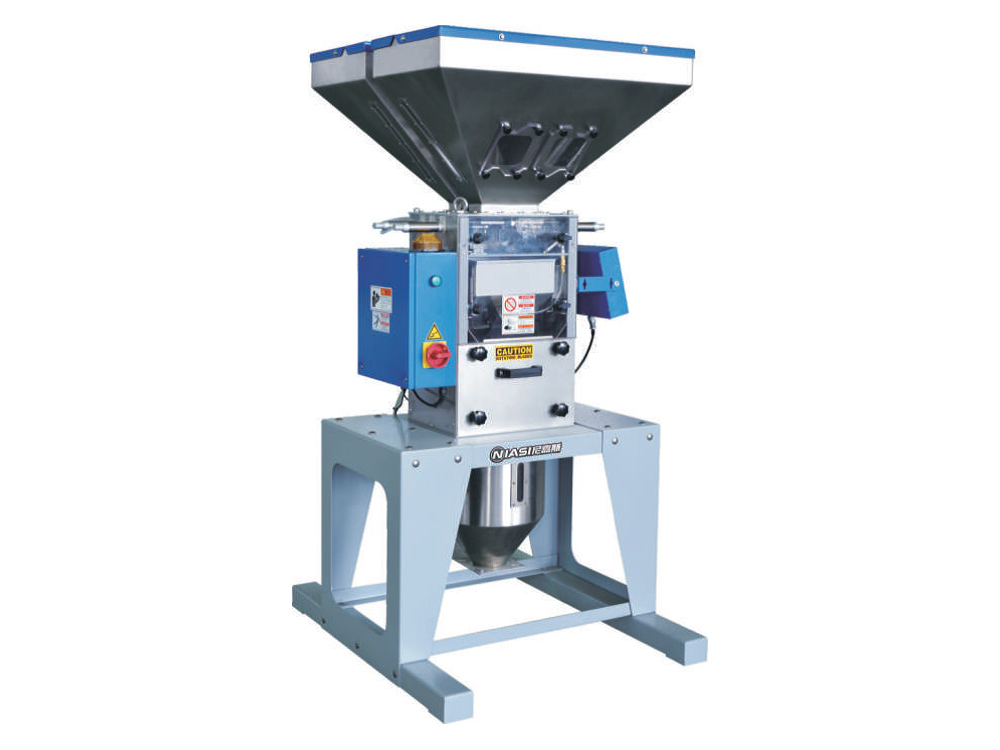

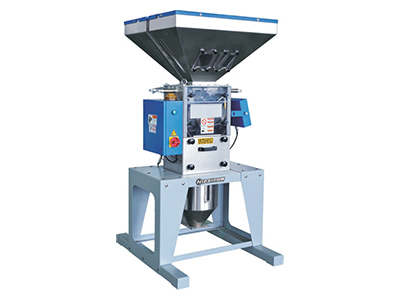

     Gravimetric Doser and Blender, NGM

    We provide dosing, mixing and coloring system for plastic processing industry, equipped with state-of-the-art tech.

    NIASI provides gravimetric dosing and blending systems that are specially designed to meet customers’ requirements of stable production, high efficiency and lower scrap volumes. This gravimetric blender can implement accurate weighing and even mixing of 2 up to 6 kinds of materials simultaneously, containing virgin materials, regrinds, masterbatch and various additives. Metering capacity ranges from 5kgs/hr to 100kgs/hr. High precision load cell allows blended batches have dosing accuracy within 0.5%.

    NIASI offers a variety of models to meet your specific needs of plastic materials mixing.

    Request A Quote
     Gravimetric Doser and Blender, NGM
    Features:
    • Recipe percentages (proportion of various materials) can be set
    • Can weighing and dosing of next batch of materials while the materials being mixed
    • Automatic compensation and calibration function
    • Can be directly mounted on the machine or placed next to the machine
    • Can process up to six kinds of materials simultaneously
    • Can equipped with material loader for automatic loading
    • All parts in contact with materials are made of stainless steel, preventing materials from being contaminated
    • Modular structure is detachable, saving space and easy to clean
    • Designed with security password to control and alarm log function
    • Acousto-optic alarm is configured to inform operator for quick maintenance
    Specification:
    Model Number of materials Number of metering valve Max. throughput (kg/hr) Max. batch capacity (kg) Compressed air (kgf/cm2) Mixing motor power (kW) Storage hopper capacity (L) Weigh bin capacity (L) Mixing chamber capacity (L) Max. batch
    GB-1 4 4 60 1 6 0.09 12 2 8 60
    3 3 70 1 6 0.09 12 2 8 70
    2 2 150 1 6 0.09 12 2 8 150
    GB-2 6 4+2 120 2 6 0.09 40 8 18 60
    5 4+1 140 2 6 0.09 40 8 18 70
    4 4 180 2 6 0.09 40 8 18 90
    3 3 200 2 6 0.09 40 8 18 100
    2 2 400 2 6 0.09 40 8 18 200
    GB-5 6 4+2 300 5 6 0.2 48 12 25 60
    5 4+1 350 5 6 0.2 48 12 25 70
    4 4 450 5 6 0.2 48 12 25 90
    3 3 500 5 6 0.2 48 12 25 100
    2 2 1000 5 6 0.2 48 12 25 200
    GB-10 6 * 600 10 6 0.37 100 32 60 60
    5 * 700 11 6 0.37 100 32 60 70
    4 * 900 12 6 0.37 100 32 60 90
    3 * 1000 13 6 0.37 100 32 60 100
    2 * 2000 14 6 0.37 100 32 60 200
    GB-25 6 * 1500 25 6 0.75 150 65 120 60
    5 * 1750 26 6 0.75 150 65 120 70
    4 * 2250 27 6 0.75 150 65 120 90
    3 * 2500 28 6 0.75 150 65 120 100
    2 * 4500 29 6 0.75 150 65 120 180
