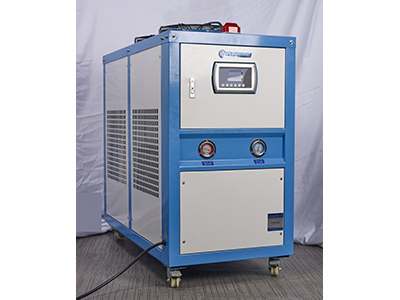

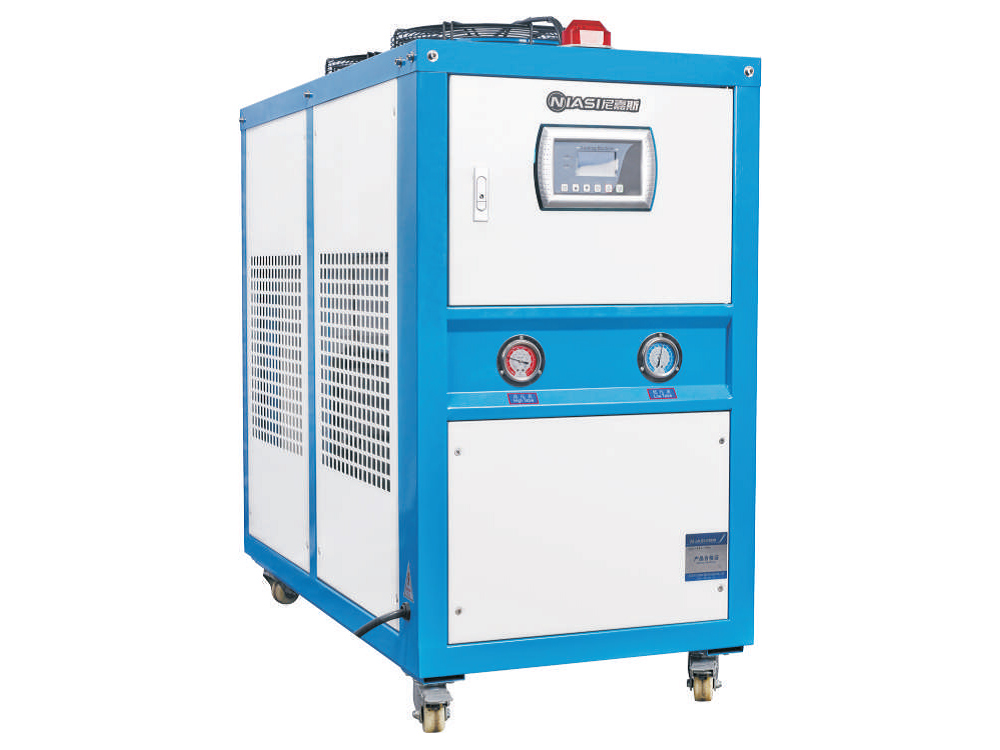

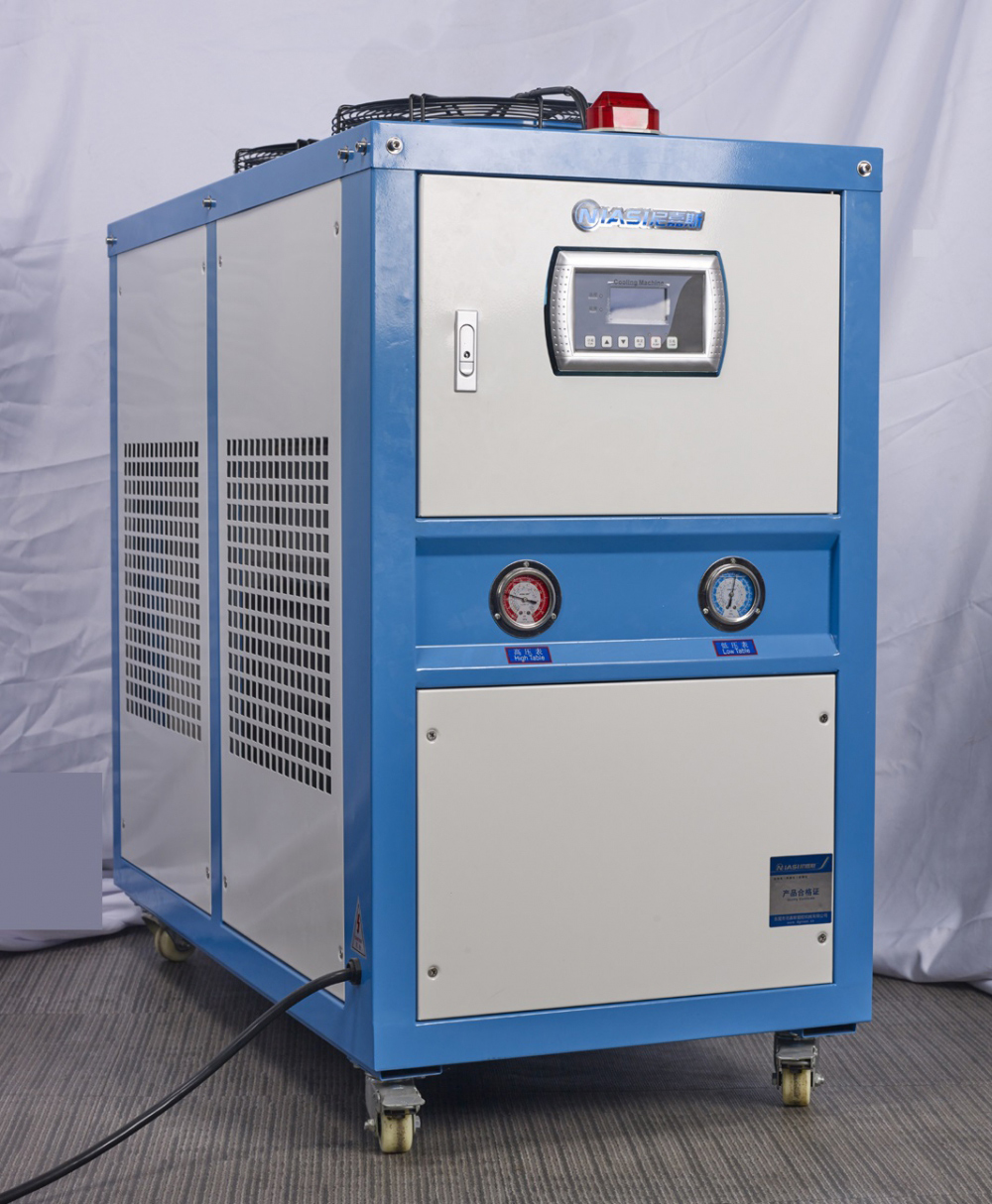

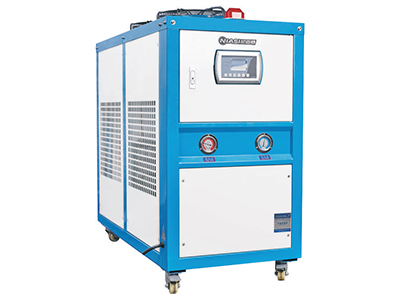

    Air-cooled Chiller, NCA

    • Home
    • Products
    • Industrial Chiller
    • Air-cooled Chiller, NCA
     Central Control

    NIASI offers various cooling equipment for plastic processing, including water-cooled chiller, air-cooled chiller and screw chiller.

    Features:
    • Chiller operating temperature ranges from 3℃ to 35℃
    • Compressor power 3HP-50HP
    • Cooling capacity 7800-128500 Kcal/hr
    • Equipped with plate fin condenser, featuring fast heat exchanging and excellent heat dissipation
    • No need cooling water supply
    • Accurate temperature control unit, water temperature can be precisely controlled
    • Over current protection
    • Built-in 304 stainless steel water tank
    • Air-cooled Chiller, NCA
    • Air-cooled Chiller, NCA
    Request A Quote
    Specification:
    Model NC
    5AS
    NC
    6AS
    NC
    7AS
    NC
    8AD
    NC
    9AS
    NC
    12AD
    NC
    14AS
    NC
    16AS
    NC
    20AS(D)
    NC
    25AS(D)
    NC
    30SA(D)
    NC
    40AS(D)
    NC
    50AS(D)
    Rated cooling capacity Btu/h 36427 48820 57082 66095 70977 94636 110409 126181 189272 228704 252363 378544 457408
    KW 10.67 14.3 16.72 19.36 20.79 27.72 32.34 36.96 55.44 66.99 74.9 110.88 133.98
    Kcal/h 9175 12296 14377 16647 17876 23835 27807 31780 47670 57601 57082 66095 70977
    USRT 3 4.1 4.8 5.5 5.9 7.9 9.2 10.5 15.8 19 21 31.5 38.1
    Input power kw 200-220V/1PHASE/50HZ 380-415v/3PHASE/50HZ
    Compressor Power 3.68 4.82 5.6 6.16 7.02 9.8 11.89 13.42 9.82*2 11.89*2 13.42*2 19.32*2 23.79*2
    water tank capacity L 55 75 75 145 210 210 250 360 510 510 510 600 780
    Standard freezing water flow m3/h 1.84 2.46 2.88 3.33 3.58 4.77 5.57 6.37 9.55 11.54 12.73 19.1 23.08
    Diameter of standard pipe DN 25 32 32 32 32 40 40 40 50 65 65 80 80
    Built-in pump Hp 0.5 0.75 1 1 1 1 1 1.5 2 3 3 5 5
    Machine weight Kg 176 260 280 320 380 410 680 710 830 1200 1400 1520 1620
    Tags
    Air-cooled chiller plastic processing chillers plastics process cooling equipment
