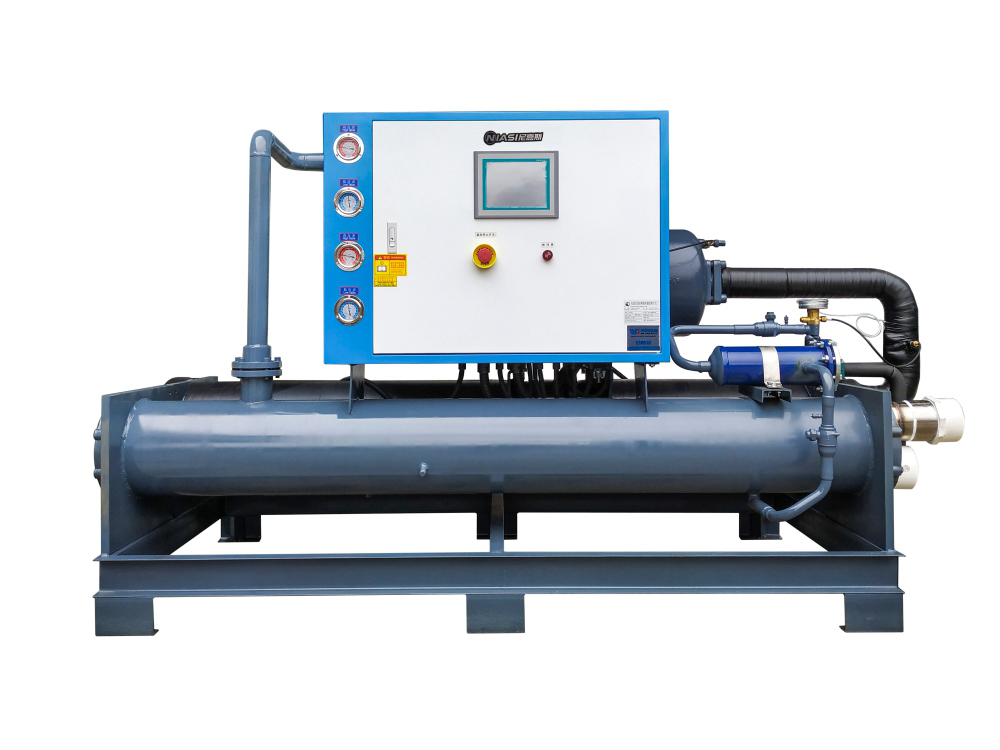

Water cooled screw chiller is configured with industrial screw compressor and copper tube condenser, providing higher cooling efficiency and more energy saving. In aspect of noise level, our water cooled screw chiller provides an ideal solution for working environment where low noise level is highly required.

Request A Quote

Features:

• Chiller operating temperature ranges from 3℃ to 35℃
• Compressor power 3HP-50HP
• Cooling capacity 7800-128500 Kcal/hr
• Equipped with shell-and-tube condenser, featuring fast heat exchanging and excellent heat dissipation
• Accurate temperature control unit, water temperature can be precisely controlled
• Over current protection
• Built-in 304 stainless steel water tank

Specification:

Model		NC- 40WSS	NC- 50wss	NC- 60wss	NC- 70WSS	NC- 90WSS	NC- 100WSS	NC- 120WSS	NC- 140WSS	NC- 160WSS	NC- 180WSS	NC- 200WSS	NC- 220wss	NC- 240WSS
Rated cooling capacity	kW	150.5	191.4	207	240.1	277.5	341.2	410.9	489.5	547	620	683.2	729.4	835.6
Input power	kW	29.9	37.2	39.9	46.3	53	64	77	90.6	100.3	110.9	122.2	130.5	159.9
Cooling circuit	KW	1	1	1	1	1	1	1	1	1	1	1	1	1
Pressure loss of cooling water	Kap	40	40	40	40	40	50	50	50	50	50	50	50	50
Flow of cooling water	m3/h	30.9	39.2	42.3	49.1	56.7	69.5	83.6	99.4	110	125.3	138.1	147.4	170.7
Cooling water flow in/ out	Inch	3	3	3	3	3	4	4	4	4	5	5	5	5
Machine Weight	kg	750	850	900	1100	1280	1600	1800	2080	2200	2700	2900	3000	3400
