The temperature control unit uses water as heat transfer medium, both direct cooling and indirect cooling modes are available for heat transferring. The direct cooling allows the temperature to be controlled in a range of 120-160℃, while the indirect cooling is specially applicable for high temperature up to 180℃.

Request A Quote
Features:
  • Electric control box is placed separately, ensuring a better insulation effect
  • PID controller
  • Fully designed with safety devices and fault indication function, no professionals required for maintenance
  • Pipes are produced from 304 stainless steel
  • Automatic air exhausting function

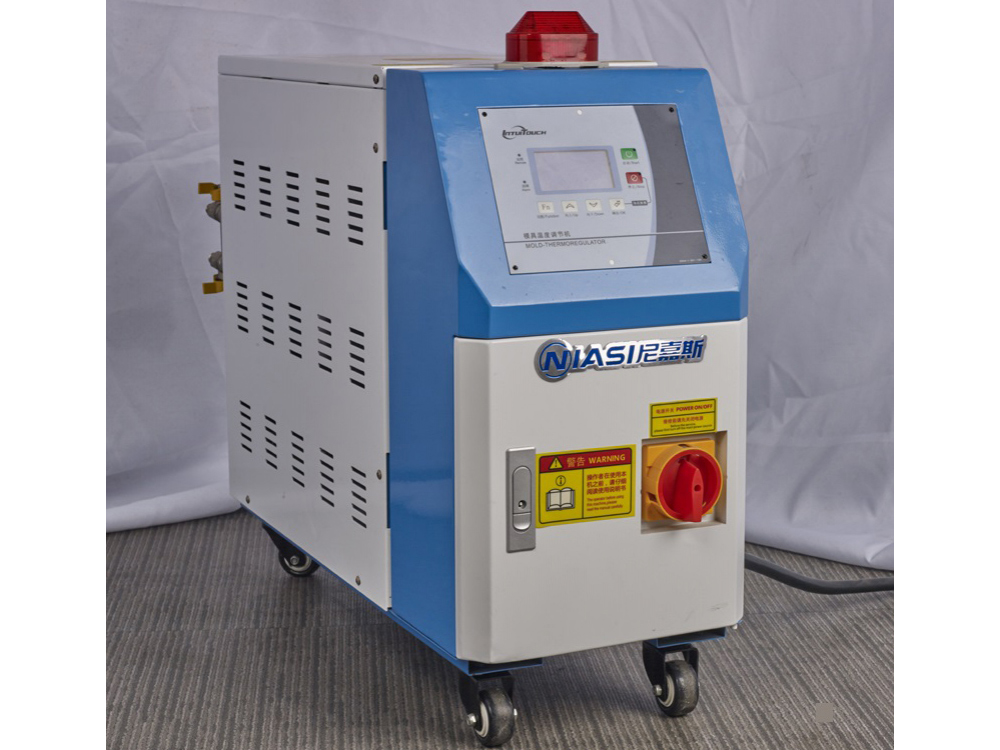

  • Temperature Control Units-Water Unit, NTW

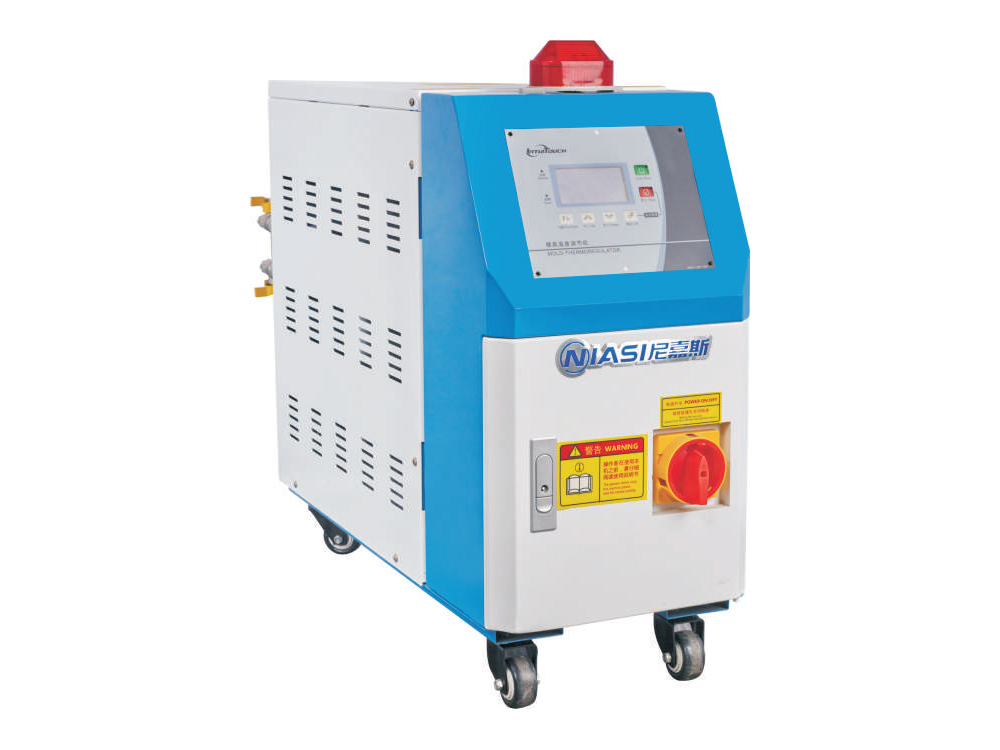

  • Temperature Control Units-Water Unit, NTW
Specification:
Model NTW-06 NTW-09 NTW-12 NTW-24 NTW-06D NTW-09D NTW-12D NTW-24D
Heater power (kw) 6 9 12 24 6*2 9*2 12*2 24*2
Cooling water pressure (kg/cm2) 2.5
Cooling water pipe PT1/2
Max. working temperature 120℃
Min. working temperature Normal temperature
Temperature control accuracy ±0.1℃
Cooling capacity (Kcal/h) 5400 10800
Pump power (HP) 0.5 1 1 2 0.5 1 1 2
Pump flow (L/min) 35 45 45 70 35 45 45 70
Pump head (m ) 26
Power supply AC 380V/3P/50HZ
Dimension (cm ) 51*52*23.5 62*59*29 67*70*29 67*79*35 51*52*23.5 62*59*29 67*70*29 67*79*35
Weight (kg) 40 50 55 65 40 50 55 65
