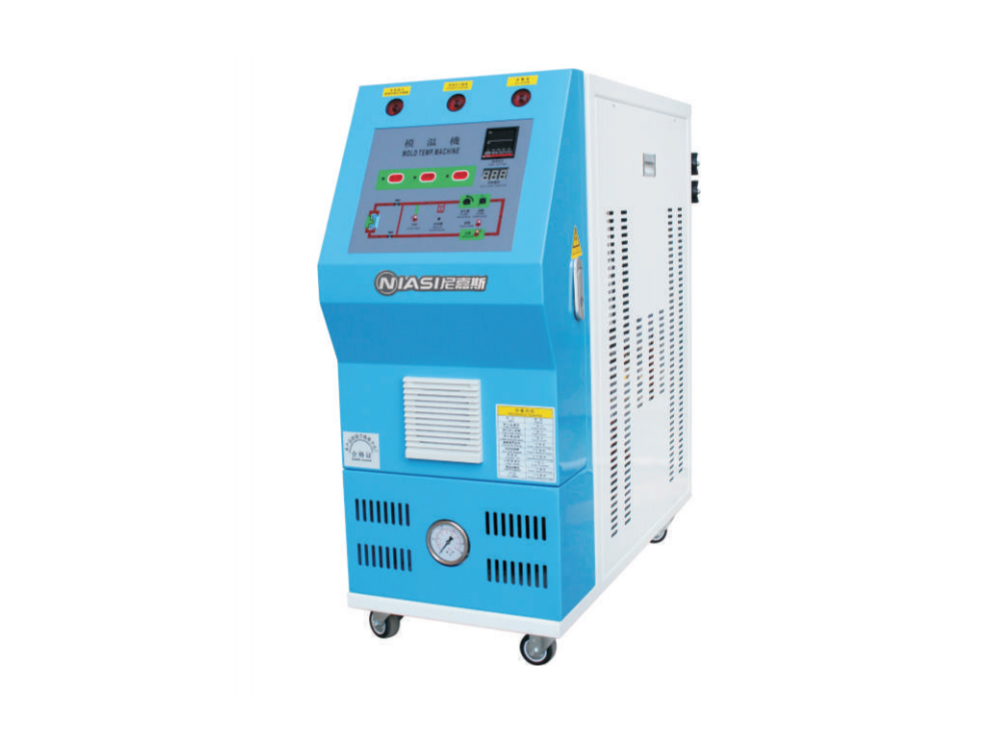

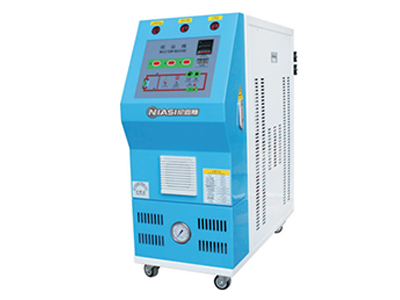

    Accurate Mold Temperature Controller for Optical Disk Industry

    • Home
    • Products
    • Temperature Control Units (TCU)
    • Accurate Mold Temperature Controller for Optical Disk Industry
     Central Control

    Mold temperature controller is the key to optimize your injection molding and operation productivity

    The temperature control unit is suitable for injection molding of products including CDs, DVDs, and optical lenses. This mold temperature controller adopts double stage pump, can heat up to a range of 150-180℃

    Request A Quote
     Accurate Mold Temperature Controller for Optical Disk Industry
    Features:
    • Micro-computer control, easy to operate
    • Japan PKC controller
    • Automatic air exhausting function
    • OMRON, RKC, ODE control components
    • Stainless steel pipes, designed with explosion proof function
    • Fault indication function is available, no professionals required for maintenance
    Specification:
    Model Unit WT-150 WT-1502 WT-180 WT-1802 WT-1803
    Temperature control range ℃ 40℃-150℃ 40℃-150℃ 40℃-180℃
    Temperature control accuracy ℃ ±1
    Power supply 3Φ380V50Z or other
    Heat transfer medium Water
    Cooling method Indirect cooling
    Heating power KW 6 12 9 12/18 18/24
    Pump power HP 1 2 1 2 3
    Max. flow L/MIN 140 200 140 200 300
    Max. pressure KG/CM2 6 6 10 10 10
    Max. power consumption KW 10 13.5 10 13.5/17.5 18/20
    Cooling water pipe INCH 1/2" 1/2" 1/2" 1/2" 1/2"
    Circulating water pipe INCH 3/8×4 3/8×4 3/8×4 1 1
    Dimension CM 81×34×90 81×34×90 81×34×90 90×38×92 90×38×92
    Weight KG 80 95 90 100 110
