The temperature control unit uses oil as heat transfer medium, heat transferring is accomplished by indirect cooling mode, and the temperature can be controlled up to 200℃.

Request A Quote
Features:
  • Electric control box is placed separately, ensuring a better insulation effect
  • Fully designed with safety devices and fault indication function, no professionals required for maintenance
  • Pipes are produced from 304 stainless steel
  • Automatic air exhausting function

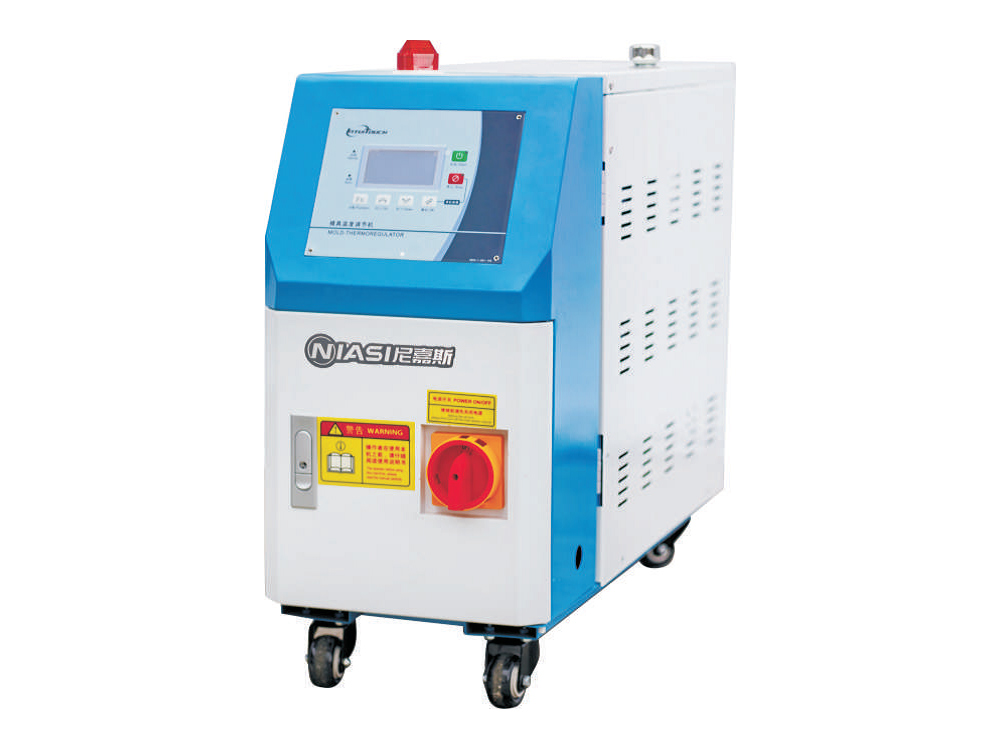

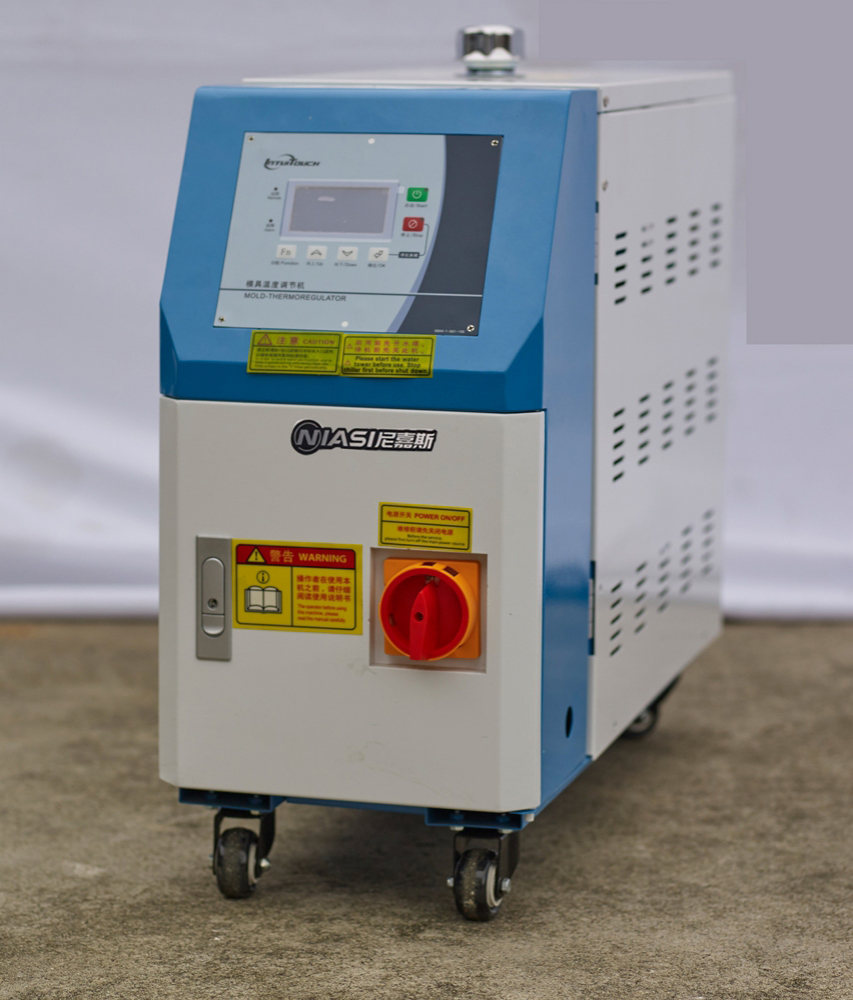

  • Temperature Control Units-Oil Unit, NTO

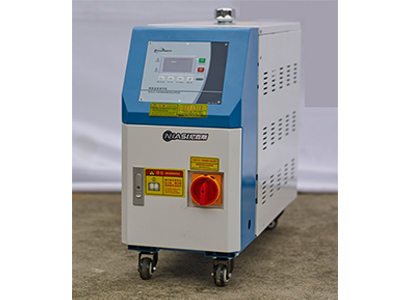

  • Temperature Control Units-Oil Unit, NTO
Specification:
Model NTO-06 NTO-09 NTO-12 NTO-24 NTO-06D NTO-09D NTO-12D NTO-24D
Heater power (kw) 6 9 12 24 6*2 9*2 12*2 24*2
Cooling water pressure (kg/cm2) 1~5
Cooling water pipe PT1/2
Max. working temperature 200℃
Min. working temperature Normal temperature
Temperature control accuracy ±0.1℃
Cooling capacity (Kcal/h) 5400 10800
Pump power (HP) 0.5 1 2 1 0.5*2 1*2 1*2 2*2
Pump flow (L/min) 35 45 45 70 35 45 45 70
Pump head (m ) 26
Power supply AC 380V/3P/50HZ
Dimension (cm ) 63.5*65*26 67*70*29 67*70*29 93*88*38 63.5*65*52 67*70*58 93*88*38 74*70*58
Weight (kg) 60 70 70 155 110 130 155 190
