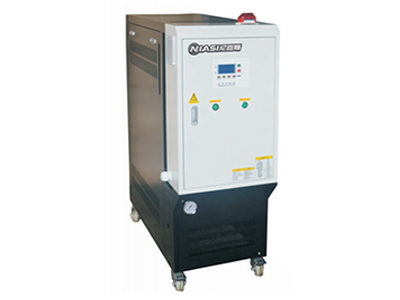

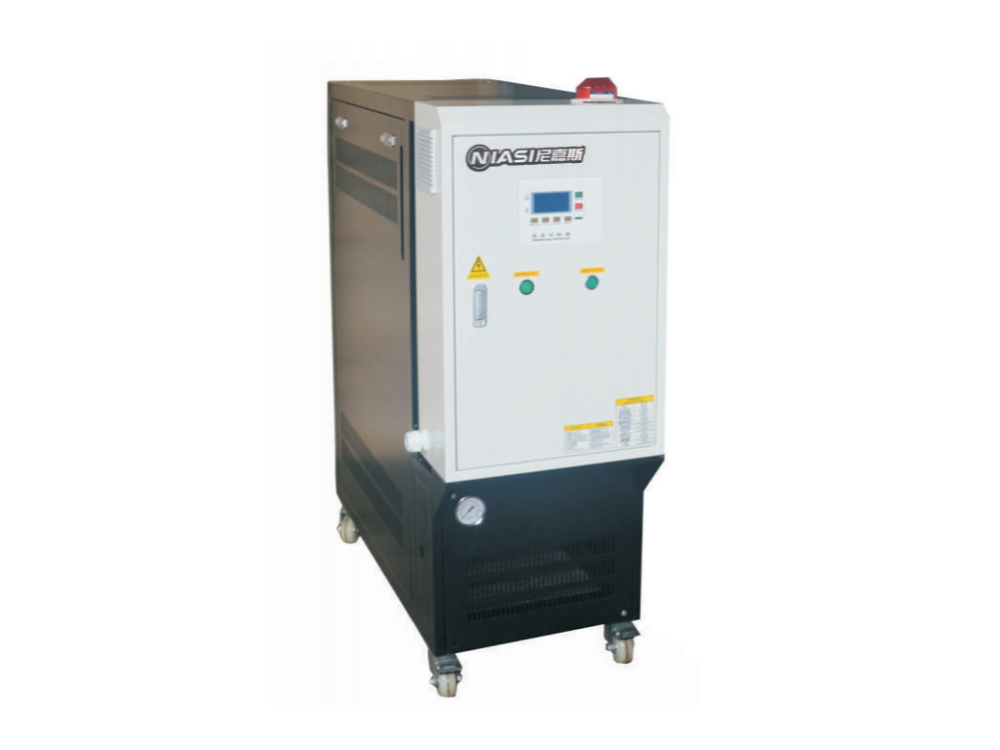

This temperature control unit is suitable for high temperature applications in plastic calendering equipment, printing equipment, and injection molds where high temperature control is highly required.

Features:

• Microprocessor PID, easy to operate
• Automatic air exhausting function
• Oil temperature display

Request A Quote

Specification:

Model	Unit	OTH-20 OGH-20	OTH-30 OGH-30	OTH-50 OGH-50	OTH-75 OGH-75	OTH-100 OGH-100	OTH-150 OGH-150
Temperature control range	℃	OTH:60℃-300℃ OGH:60℃-350℃
Temperature control accuracy	℃	±1
Power supply	KW	12/18	18/24	24/36	36/48	48/72	72/96
Pump power	KW	1.5	2.2	3.75	5.5	7.5	11
Max. flow	L/MIN	130	165	205	330	665	1000
Max. pressure	KG/CM2²	2.2	2.5	3.2	3.8	4.3	3.8
Max. power consumption	KW/H	13.6/19.7	20.4/26.4	28.1/40	41.9/54	56/80.5	84/108
Cooling water pipe	INCH	1/2"	1/2"	1/2"	1/2"	1/2"	1/2"
Circulating water pipe	INCH	1	1-1/4	1-1/2	2	2	2
