    Temperature Control Units-120℃/160℃ Alternating Temperature

    • Home
    • Products
    • Temperature Control Units (TCU)
    • Temperature Control Units-120℃/160℃ Alternating Temperature
     Central Control

    Mold temperature controller is the key to optimize your injection molding and operation productivity

    This temperature control unit supports applications with injection mold temperatures of 120℃ and 160℃, allowing for efficient heating adapted to various plastic properties. The heating system operates through two independent circuits by which heat transfer fluids of different temperatures pass through.

    Request A Quote

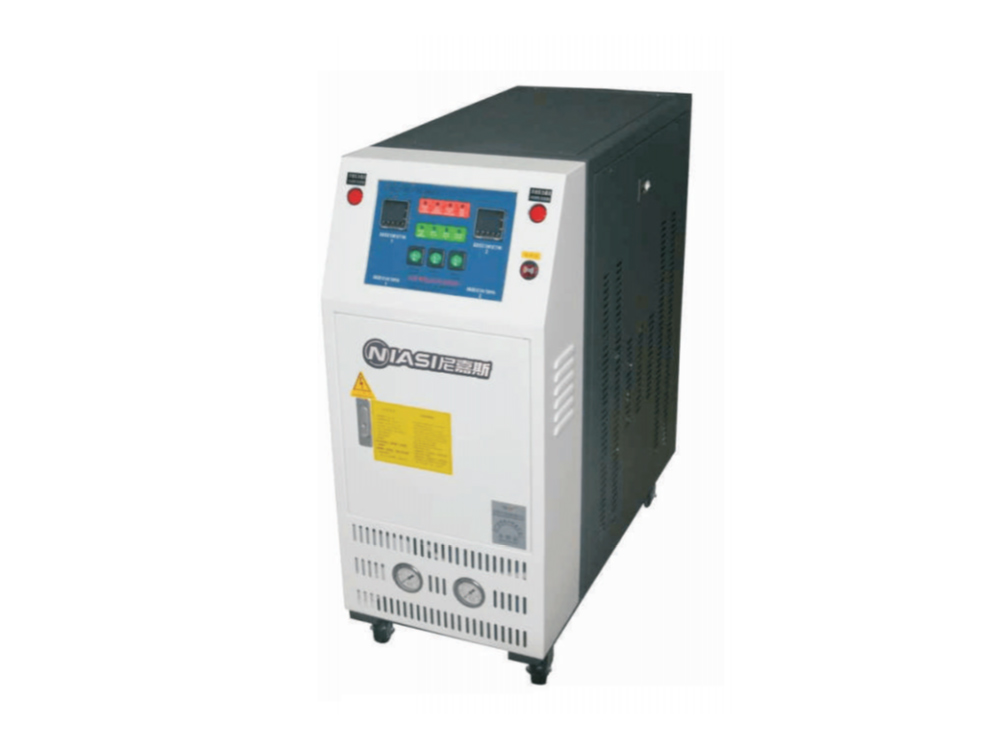

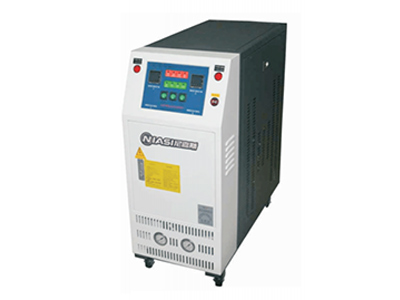

     Temperature Control Units-120℃/160℃ Alternating Temperature
    Features:
    • Single stage pump is adopted to save power and space
    • Adopting Italian brand MERI hot water pump to provide high pressure and reduce the temperature difference
    • Japan OMRON thermostat, equipped with touch screen PID control panel
    • Separate design of control box prevents the entering of water, oil and air
    • Pipes are produced from stainless steel
    • Fault indication function is available, no professionals required for maintenance
    Specification:
    Model Unit NTWD-120 NTWD-160
    Power supply AC3Φ380V 50HZ or other AC3Φ380V 50HZ or other
    Temperature control range ℃ Room temperature +5℃~120℃ Room temperature +20℃~160℃
    Temperature control accuracy ℃ P.I.D±1℃ P.I.D±1℃
    Heat transfer medium Water water
    Cooling method Direct cooling Indirect cooling
    Heating power KW 6KW/9KW 6KW/9KW
    Max. flow L/MIN 50L/MIN 50L/MIN
    Max. pressure KG/CM2² 4KG/CM2 4KG/CM2
    Max. power consumption KW 13.5KW/19.5KW 13.5KW/19.5KW
    Alarm function Phase loss, phase reversal, water shortage, over-temperature, overload, overpressure Phase loss, phase reversal, water shortage, over-temperature, overload, overpressure
    Cooling water pipe INCH 1/2" 1/2"
    Circulating water pipe INCH 3/8"×4 in 4 out*2 sets 3/8"×2 in 2 out*2 sets
